Overview

This guide shows you how to set up Device Fingerprinting using the API. By the end, you’ll have:
  • Added Device Fingerprinting to your application.
  • Wired up a JS event to call GetTelemetryID().
  • Called the fingerprint.lookup() endpoint.
  • Collected fingerprint data to store.
  • Analyzed Stytch’s verdict and recommended action.

​
Prerequisites

  • An existing Stytch B2B or Consumer project in the Dashboard.
  • The project_id, public_token, and secret for your project’s Test environment. These can be found under your project’s Project ID & API keys section in the Dashboard.
  • Device Fingerprinting enabled for your project.
Estimated time required: 1 hour

​
Get started

1

Add the Device Fingerprinting script to your app

  1. To start, add the following script tag into the HEAD or BODY of your app’s HTML file:
    <head>
  <script src="https://elements.stytch.com/telemetry.js"></script>
</head>
  2. Once the HTML page is live in your app, every client that loads the page will fetch a copy of the Device Fingerprinting bundle.
2

Create a JavaScript event handler to call GetTelemetryID()

  1. Call GetTelemetryID() with your project’s public_tokenwhen the client triggers a particular event or accesses a protected resource.
  2. The function will return a promise that resolves to a Telemetry ID once the fingerprinting step is complete.
  3. Once you’ve extracted the Telemetry ID, send it to your backend or middleware as an X-header or URL paramater.
For this guide, we’ll wire up an onClick() event handler to a login endpoint:
<html>
<head>
    <script src="https://elements.stytch.com/telemetry.js"></script>
</head>
<body>
    <button id="login" onclick="login()">Click here to login!</button>

    <script>
        function login() {
            var publicToken = "${publicToken}"; // public token from Stytch Dashboard
            GetTelemetryID({
                publicToken: publicToken
            }).then((telemetry_id) => {
                var request = new XMLHttpRequest();
                request.open('POST', 'https://www.customer.com/login', true);
                // include telemetry_id in the login request
                request.setRequestHeader('X-Telemetry-ID', telemetry_id);
                request.send(null);
            });
        }
    </script>
</body>
</html>
3

Call Fingerprint Lookup for recommended actions

  1. Extract the telemetry_id from your backend, middleware, or wherever you sent the request from Step 2.
  2. Call the fingerprint.lookup() endpoint and pass in the telemetry_id to pull the data and analyze the fingerprints:
    curl --request POST \
  --url https://telemetry.stytch.com/v1/fingerprint/lookup \
  -u "${PROJECT_ID}:${SECRET}" \
  -H 'Content-Type: application/json' \
  -d '{
    "telemetry_id": "${'${TELEMETRY_ID}'}"
  }'
    This API call requires a basic auth header of PROJECT_ID and SECRET, which can be found in the Dashboard.
  3. After a successful lookup call, the response should look like:
    Response 200
    {
 	"created_at": "2023-01-01T00:00:00Z",
 	"expires_at": "2033-01-01T00:00:00Z",
 	"fingerprints": {
  		"browser_fingerprint": "browser-fingerprint-0b535ab5-ecff-4bc9-b845-48bf90098945",
  		"browser_id": "browser-id-99cffb93-6378-48a5-aa90-d680232a7979",
  		"hardware_fingerprint": "hardware-fingerprint-4af7a05d-cf77-4ff7-834f-0622452bb092",
  		"network_fingerprint": "network-fingerprint-b5060259-40e6-3f29-8215-45ae2da3caa1",
  		"visitor_fingerprint": "visitor-fingerprint-6ecf5792-1157-41ad-9ad6-052d31160cee",
  		"visitor_id": "visitor-6139cbcc-4dda-4b1f-b1c0-13c08ec64d72"
 	},
 	"status_code": 200,
 	"telemetry_id": "026ac93b-8cdf-4fcb-bfa6-36a31cfecac1",
 	"verdict": {
  		"action": "ALLOW",
  		"detected_device_type": "...",
  		"is_authentic_device": true,
  		"reasons": [...]
 	}
}
  4. You can store and log this response to collect your fingerprint data.
4

Review recommended actions for decisioning

In the response, there is a verdict object with a recommended action for you to take against the client. There are three possible recommended actions:
  • ALLOW: A known valid device grouping or device profile that is part of the default set of known allowed devices by Stytch. This grouping is made up of mostly verified device profiles that match the fingerprint characteristics of known or authentic origins.
  • BLOCK: A known bad or malicious device profile that is undesirable and should be blocked from completing the privileged action in question.
  • CHALLENGE: An unknown or potentially malicious device that should be put through increased friction such as multi-factor authentication or other forms of extended user verification before allowing the privileged action to proceed.
See Verdicts to learn more.
Our recommended actions are based on proprietary fingerprinting and device classification processes.
5

Viewing lookup results and activity

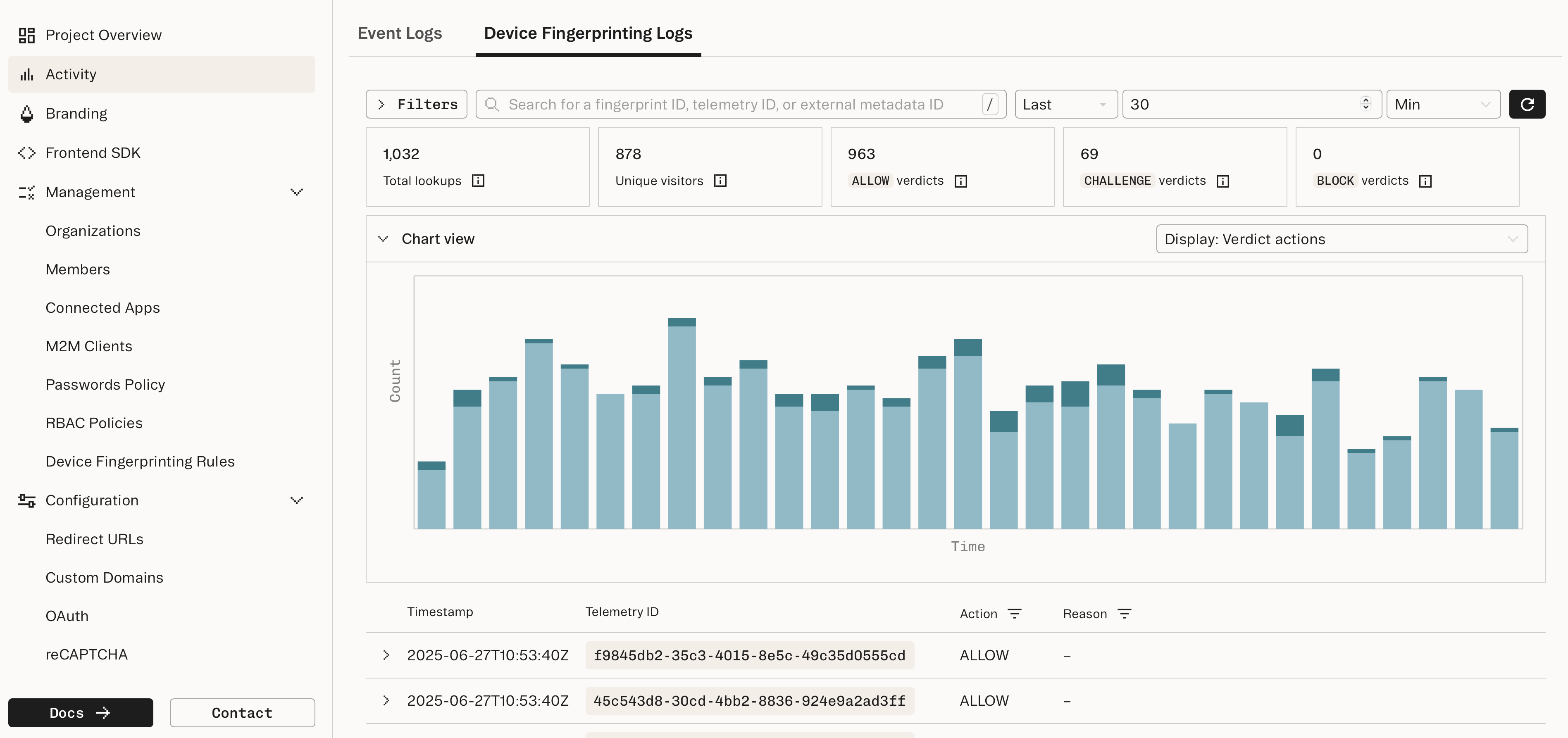

You can see the results of your lookups in the Dashboard:
Device Fingerprinting Dashboard
This provides you with a high-level view of the various fingerprints, verdicts, and verdict reasons your application is encountering.You can also view the details of individual fingerprints to understand the various devices that are querying your service.

​
Next steps

Set decisioning rules

Create rules to customize your decisioning for specific fingerprints.
